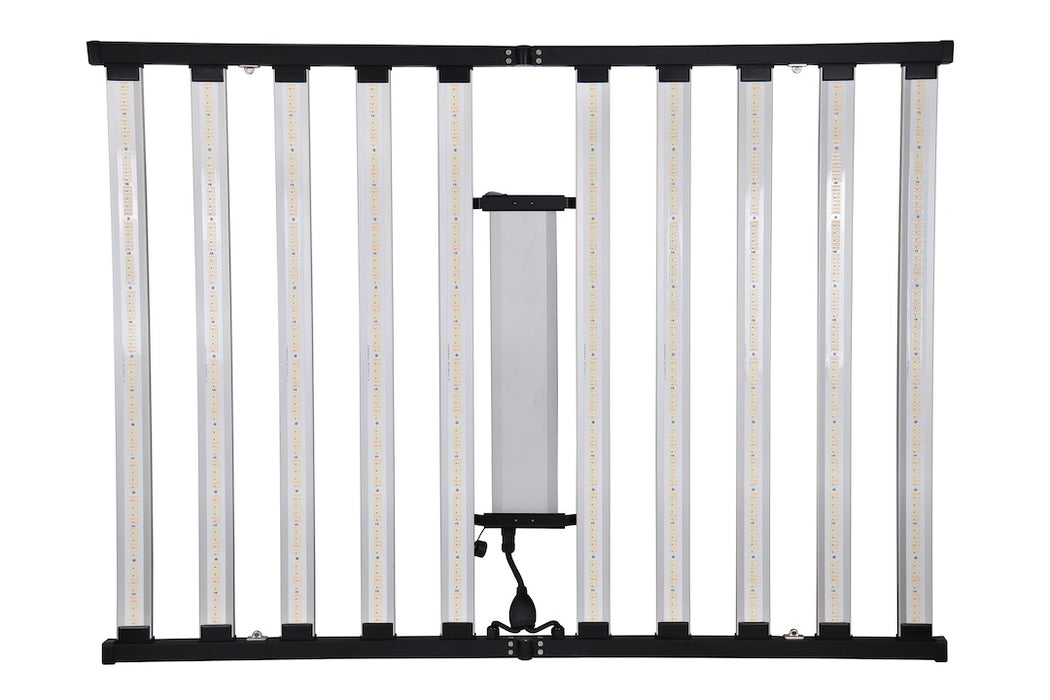

NEW SPD FOLDING PRO3 8P A20 1000W LED Grow Light

NEW SPD FOLDING PRO3 8P A20 1000W LED Grow Light

$615.00 - $615.00
$615.00
$615.00 - $615.00
$615.00



Commercial Indoor Cannabis LED Lighting Solution

Model: SPD FOLDING PRO3 8P A20 1000W

Overview: The SPD FOLDING PRO3 8P A20 1000W LED Grow Light is a full-cycle top-lighting solution designed for commercial cannabis cultivation. It is suitable for various growth stages, from vegetative growth to high light intensities during the bloom phase. The robust and compact design ensures easy installation and reliable performance in diverse environments.

Key Features:

  • Efficacy: Up to 3.0 μmol/J
  • High Light Output: 2800-2900 μmol/s
  • Power: 1000W @ 220V AC
  • Input Voltage: 100-277V AC, 50/60Hz
  • Beam Angle: 120°
  • Mounting Height: 5” to 12” (127-305mm) above canopy
  • Thermal Management: Passive cooling
  • Operating Temperature: Up to 90°F (35°C)
  • Dimming: 10V source & DALI control
  • IP Rating: IP54 (suitable for wet locations)
  • Certifications: ETL & cETL, FCC, IECE, DLC
  • Warranty: 5 years standard

Electrical Specifications:

  • Power Factor: 0.98
  • Total Harmonic Distortion (THD): <10%
  • Lifetime: L80 > 50,000 hours

Dimensions & Weight:

  • Lamp Outer Box: 45.28” L x 26.38” W x 4.72” H (1150mm x 670mm x 120mm)
  • Net Weight: 21.1 Kg (47.40 lbs)
  • Gross Weight: 22.5 Kg (49.60 lbs)

Light Source:

  • Type: Philips & Sanan LEDs
  • Spectrum: SPF A20-FLW Indoor(TM)
  • PPFD (Photosynthetic Photon Flux Density):
    • 12"/1ft/30cm: 988-1099 μmol/m²/s
    • 18"/1.5ft/45cm: 1100-1719 μmol/m²/s
    • 24"/2ft/61cm: 409-697 μmol/m²/s
    • 30"/2.5ft/76cm: 225-396 μmol/m²/s

Installation & Accessories:

  • Mounting Hardware: Steel wire rope, manual lifting sling
  • AC Plug Types:
    • N5-15 NAME 5-15P
    • N6-15 NAME 6-15P
    • N8-20 NAME 8-20P
  • Power Cord Length: 5ft (1.525m) or 10ft (3.05m)
  • Standard Accessories: Power cord, instruction manual, wire rope chain or "V" hook

Environmental Conditions:

  • Recommended CO2 Levels: 1000-1600 ppm during the reproductive stage
  • Recommended Indoor Temperature: Daytime: 22-28°C (71.6-82.4°F), Night: 20-22°C (68-71.6°F)
  • Recommended Humidity:
    • Leaf Stage: 75-80%
    • Pre-Flowering Stage: 60-70%
    • Late Flowering Stage: 50-55%

Control System:

  • Controller: DALI Control System with features such as spectrum switch, four channels control, power control (0-100%), scenario mode setting, time-division power on switch control, sunrise and sunset modes, high temperature reduction, PPFD settings, and CO2 PPM settings.

Usage Instructions:

  1. Turn off the power.
  2. Fix the wire rope.
  3. Connect the light to the wire rope.
  4. Adjust the wire rope to make the light balanced.
  5. Insert the AC plug into the socket.
  6. Turn on the power.

Light On/Off Suggestions:

  • Seeding and Vegetative Stages: 20 hours on / 4 hours off or 18 hours on / 6 hours off
  • Flowering Stage: 12 hours on / 12 hours off

PPFD Layout: The SPD FOLDING PRO3 8P A20 1000W provides consistent PPFD readings across various hanging heights, ensuring optimal light distribution and intensity for different growth stages.

Maintenance Tips: To ensure the best PPFD acquisition, maintain a distance of 5-12 inches between the plant canopy and the light source.
